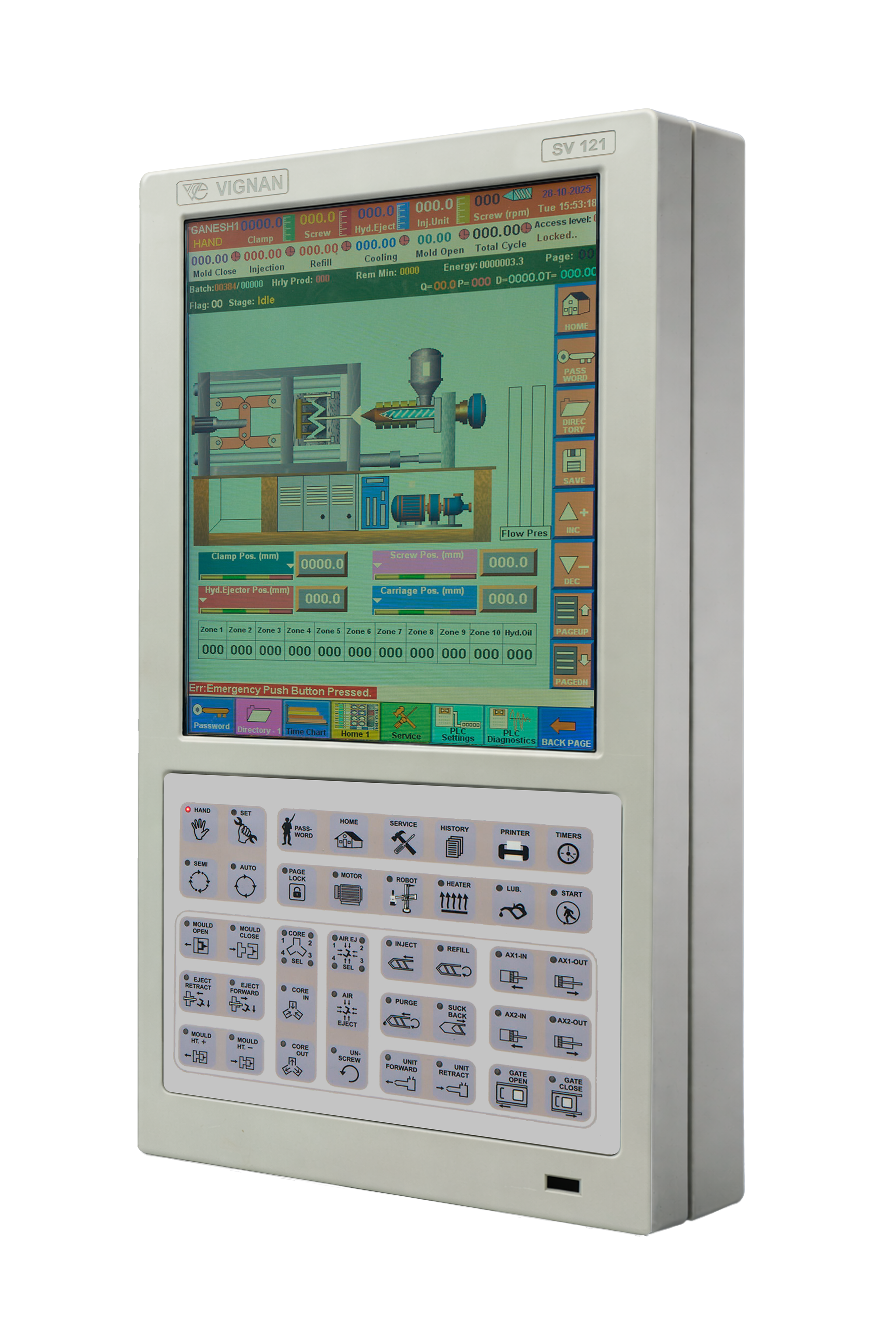

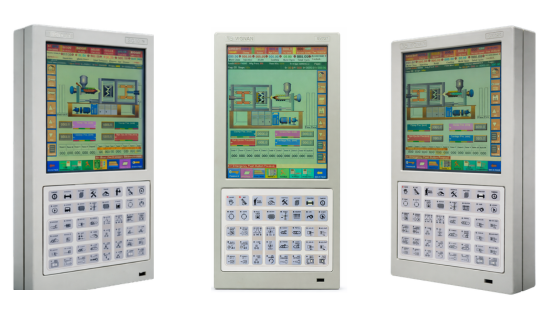

SV121
Advanced HMI Controller for Injection Molding Machines
12.1"
Screen Size
1024*768
Resolution
USB / Ethernet / RS232
Connectivity
HIGH
I/O Capacity
All Injection Moulding Machines
Best For
MAIN TECHNICAL ADVANTAGES
Key Features
Industry-leading solutions designed for performance, reliability, and ease of use.
Rich Color Touchscreen Interface
A 12.1" portrait touch display with 16.2 million colors and 1024×768 resolution provides exceptional clarity and easy machine parameter visualization.
High-Speed Embedded Processing
Powered by a 32-bit ARM Cortex-M3 processor, enabling fast machine response and accurate execution of control commands.
Real-Time Machine Monitoring
Displays all key machine parameters including cycle time, pressure, temperature, alarms, and production status in real time.
Modular I/O Architecture
Digital & proportional outputs programmable for each execution stage.
Operator-Friendly Control Panel
Equipped with 40 feather-touch keys with LED indicators ensuring safe and efficient machine operations.
Industrial-Grade Build
ABS blend rugged enclosure with shock-absorbing structure designed for long-term durability in factory environments.
TECHNICAL DETAILS
Specifications
| Parameter | Value |
|---|---|
| Screen Size | 12.1" |
| LCD BACKLIT | LED-TYPE, DIGITALLY CONTROLLED CONTRAST |
| MACHINE SCAN TIME | 1000 TIMES/SEC |
| MMI SCAN TIME | 1000 TIMES/SEC |
| NO. OF MOLD PROGRAMS | 150 |
| Communication Ports | IXUSB(2.O), IXETHERNET OR RS232 |
| 1/0 BOARD INTERFACE | UTP CAT 6 CABLE, WITH REMOTE INTERFACE UPTO 50M |
| HISTORY DATABASE MEMORY | 2GB, DATA RETENTION FOR MACHINE LIFETIME |
| ERGONOMICS | Elegant aesthetics, ABS blend enclosure, rugged-built with shock absorbing lining |
| I/O Capacity | HIGH |
| MMI Core | 32-Bit ARM-Cortex M3 Embedded Processor |
| Optional Modules | GSM Module Interface, Voice Annunciation |
| Weight | 1500gms |
| Operating Temperature | 0-70°C |
| Resolution | 1024*768 |
| Best For | All Injection Moulding Machines |
| I/O Compatibility | Upto 32 Inputs/64 Outputs |
PRODUCT COMPONENTS
What's in the box

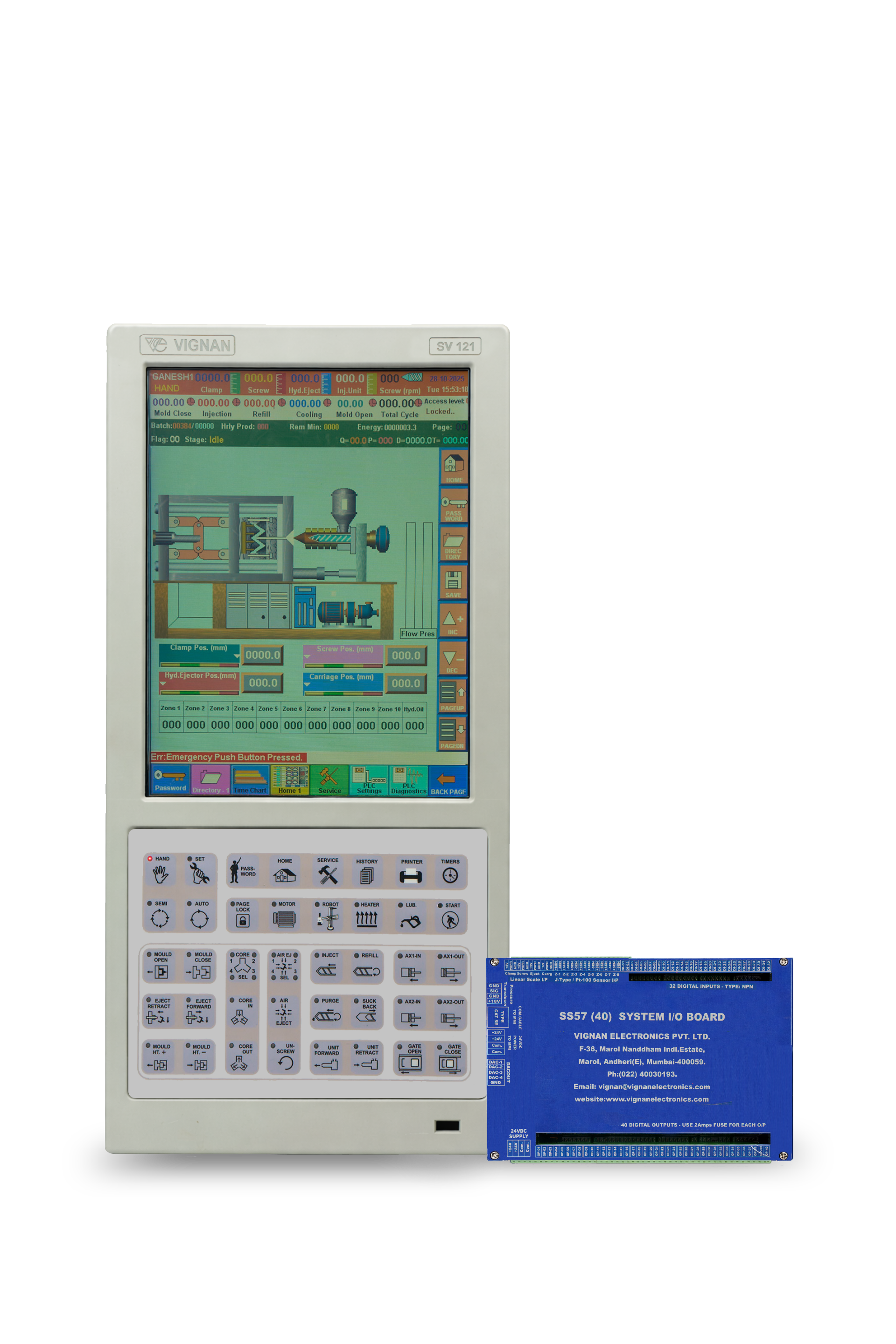

Human Machine Interface (HMI)
The large 12.1" touch interface provides a graphical representation of machine status, enabling operators to easily control injection parameters and monitor production performance.
Controller Processing Unit
The high-speed embedded processor ensures rapid response time and stable machine control, enabling smooth execution of complex injection molding cycles.
Modular I/O Interface
The controller supports modular I/O systems connected via CAT6 interface cables, allowing machine builders to configure I/O capacity based on machine size and complexity.
Supply Cable
Pre-configured cable set for quick and secure connectivity between controller and machine systems, reducing installation time.
Amplifier Card
Enables precise control of proportional valves, ensuring accurate pressure and flow regulation for optimized machine performance.
Noise Filter
Protects the system from electrical noise and voltage disturbances, enhancing controller stability and longevity.
RESOURCES
Technical Documents
Download comprehensive documentation for SV121 installation, configuration, and maintenance.
USE CASES
Popular Applications for SV121
Horizontal Injection Molding
High-speed production with consistent output
Vertical Injection Moulding
Efficient insert molding with compact design
Toggle Mechanism Machines
Energy-efficient clamping for faster cycles
Direct Locking Machines
Uniform clamping for precision moulding
Multi-Material Machines
Advanced control for multi-shot molding
Precision Moulding Applications
Tight tolerance control for critical parts
