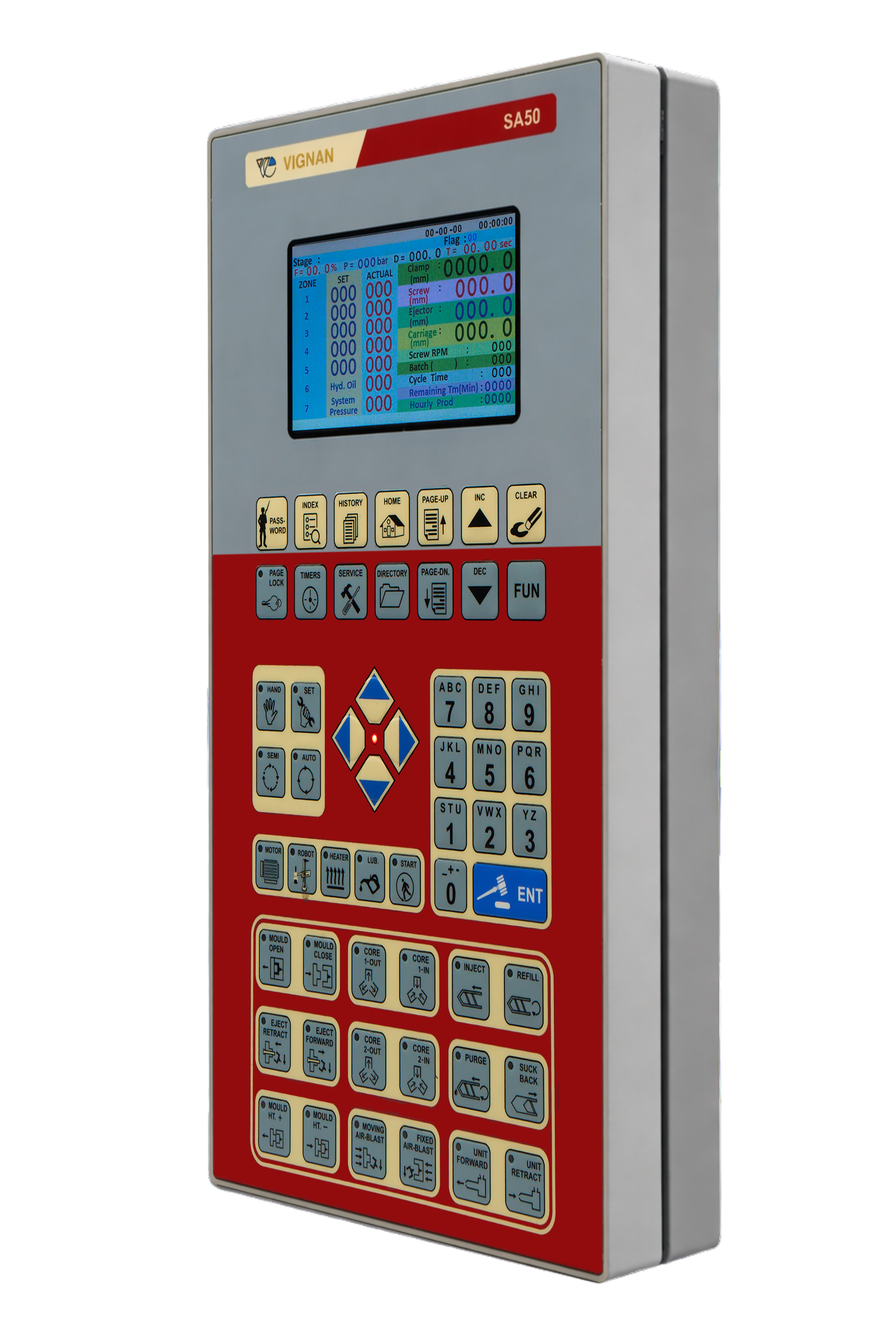

SA50
Compact Controller for Small & Vertical Injection Molding Machines
5"
Screen Size
32-bit ARM-7 @72 MHz
I/O Capacity
Small & Vertical Injection Molding
Best For
MAIN TECHNICAL ADVANTAGES
Key Features
Industry-leading solutions designed for performance, reliability, and ease of use.
Compact Industrial Controller
The SSB system features an ultra-compact architecture, allowing easy installation even in space-constrained machines.
Reliable Embedded Processing
Powered by a 32-bit ARM-7 processor running at 72 MHz, ensuring stable machine operation
Simple Operator Interface
A 4-line industrial display and LED-enabled keypad provide operators with a clear view of machine parameters and system status.
Programmable Digital Outputs
The controller allows on-site programmable digital outputs, enabling customization for different stages of machine operation.
Precise Temperature Control
The system includes adaptive PID temperature control with high measurement accuracy
Quick Setup & Diagnostics
SSB is designed for easy configuration, option management, and fault diagnostics, helping reduce machine downtime.
TECHNICAL DETAILS
Specifications
| Parameter | Value |
|---|---|
| System Configuration | Ultra Compact System |
| Processor | 32-bit ARM-7 Embedded Processor @72MHz |
| Display | 4-Line Industrial Display |
| LCD Backlight | LED with brightness control |
| Number of Keys | 32 Keys with LED indication |
| Machine Scan Time | 2500 microsec (400 cycles/sec) |
| MMI Scan Time | 1000 microsec |
| Mold Programs | 2500 microsec (400 cycles/sec) |
| Mold Programs | 32 |
| Digital Inputs | 16 (NPN-NO type) |
| Digital Outputs | 20 (Max 2A output per channel) |
| Analog Inputs | 2 (Clamp + Screw version) |
| Temperature Sensors | 4 (J/K Thermocouple) |
| Analog Resolution | 12-bit |
| Temperature Measurement Accuracy | 0.25°C |
| Temperature Control Accuracy | +1 to −2°C |
| Temperature Control Type | Advanced Adaptive PID |
| PWM Outputs | 2 digitally calibrated |
| PWM Voltage Range | 0–10V |
| Power Consumption | 3.25W (standby) |
| Max Operating Temperature | 60°C |
| Mechanical Dimensions | 154mm × 245mm |
| Screen Size | 5" |
| I/O Capacity | 32-bit ARM-7 @72 MHz |
| Best For | Small & Vertical Injection Molding |
| I/O Compatibility | Upto 24 Inputs/40 Outputs |
PRODUCT COMPONENTS
What's in the box

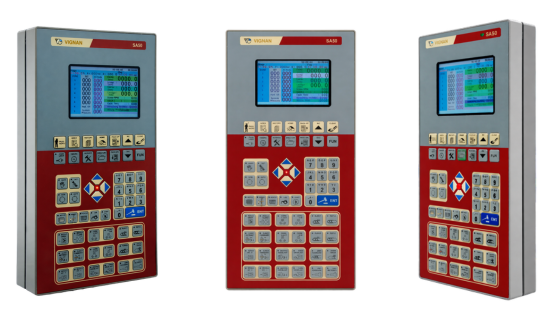

Operator Display Unit
The simple multi-line display enables quick access to machine parameters, alarms, and process settings.
Embedded Control Processor
The ARM-based processor ensures reliable machine control and stable execution of injection cycles.
I/O Control Interface
The integrated I/O system connects sensors, heaters, valves, and machine components for seamless operation.
Supply Cable
Pre-configured cable set for quick and secure connectivity between controller and machine systems, reducing installation time.
Amplifier Card
Enables precise control of proportional valves, ensuring accurate pressure and flow regulation for optimized machine performance.
Noise Filter
Protects the system from electrical noise and voltage disturbances, enhancing controller stability and longevity.
USE CASES
Popular Applications for SA50
Horizontal Injection Molding
High-speed production with consistent output
Vertical Injection Moulding
Efficient insert molding with compact design
Toggle Mechanism Machines
Energy-efficient clamping for faster cycles
Direct Locking Machines
Uniform clamping for precision moulding
Multi-Material Machines
Advanced control for multi-shot molding
Precision Moulding Applications
Tight tolerance control for critical parts
