SV84

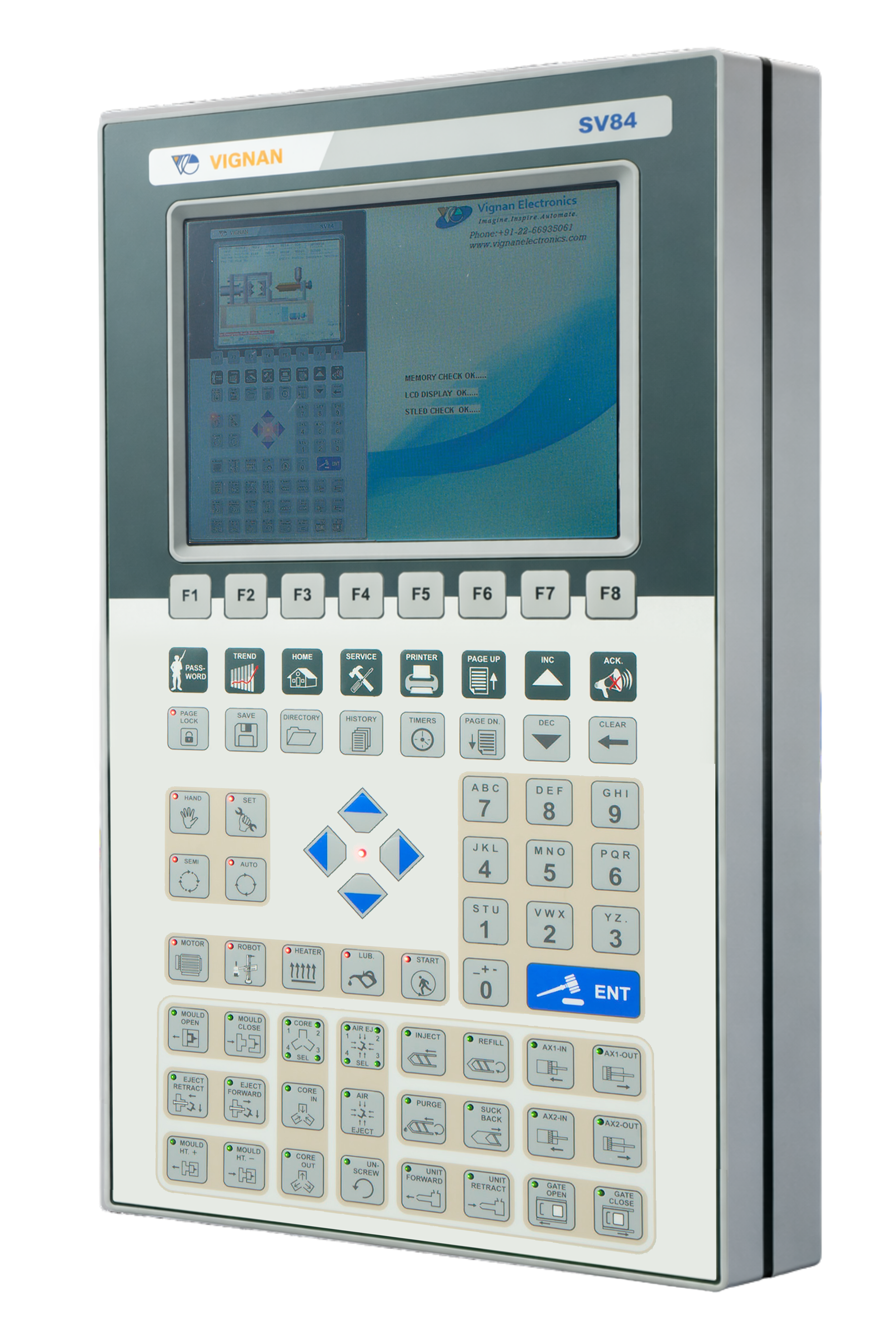

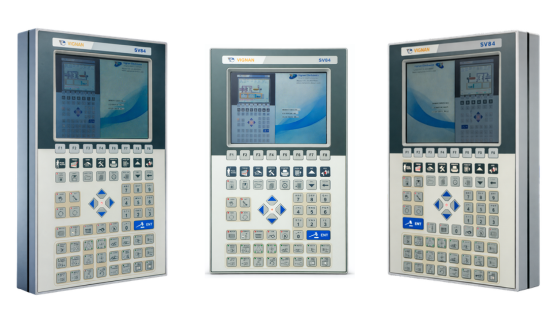

Advanced HMI Controller for Injection Molding Machines
8.4"
Screen Size
800*600 PIXELS
Resolution
USB / Ethernet / XRS232
Connectivity
All Injection Moulding Machines
Best For
MAIN TECHNICAL ADVANTAGES
Key Features
Industry-leading solutions designed for performance, reliability, and ease of use.
Rich Graphics Industrial HMI
SV84 features an 8.4" Windows-color graphical HMI display with 16.2 million colors and 800×600 resolution
High-Speed Embedded Processing
Powered by a 32-bit ARM Cortex M3 processor, the controller ensures stable machine operation.
Feather-Touch Industrial Keypad
The system includes 72 feather-touch keys with LED indication, enabling operators to access functions quickly.
Live Machine Parameter Visualization
Operators can monitor flow, pressure, zone temperature, robot management, production data.
Modular I/O Architecture
The controller supports modular input/output configuration, allowing machine builders to scale the system based on machine.
Multi-Processor Hardware System
SV84 uses a triple-processor hardware architecture based on ARM and PIC technology, delivering reliable performance
TECHNICAL DETAILS
Specifications
| Parameter | Value |
|---|---|
| MMI Core | 32-Bit ARM-Cortex M3 Embedded Processor |
| LCD Backlit | LED-type, digitally controlled contrast |
| Machine Scan Time | 1 msec fixed (1000 times/sec) |
| MMI Scan Time | 1 msec fixed (1000 times/sec) |
| No. of Mold Programs | 150 |
| Communication Ports | 1xUSB(2.0), 1xEthernet, 1xRS232 |
| I/O Board Interface | UTP CAT 6 Cable, with remote interface upto 50m |
| History Database Memory | 2GB, data retention for machine lifetime |
| Optional Modules | GSM Module Interface, Voice Annunciation |
| Ergonomics | Elegant aesthetics, ABS blend enclosure, rugged-built with shock absorbing lining |
| Weight | 1500gms |
| Operating Temperature | 0-70°C |
| Screen Size | 8.4" |
| Resolution | 800*600 PIXELS |
| Best For | All Injection Moulding Machines |
| I/O Compatibility | Upto 32 Inputs/64 Outputs |
PRODUCT COMPONENTS
What's in the box
Human Machine Interface (HMI)
The 8.4” graphical interface provides operators with intuitive access to machine parameters, production data, and diagnostics.
Controller Processing Unit
The multi-processor system ensures high reliability and efficient machine operation across complex injection molding processes.

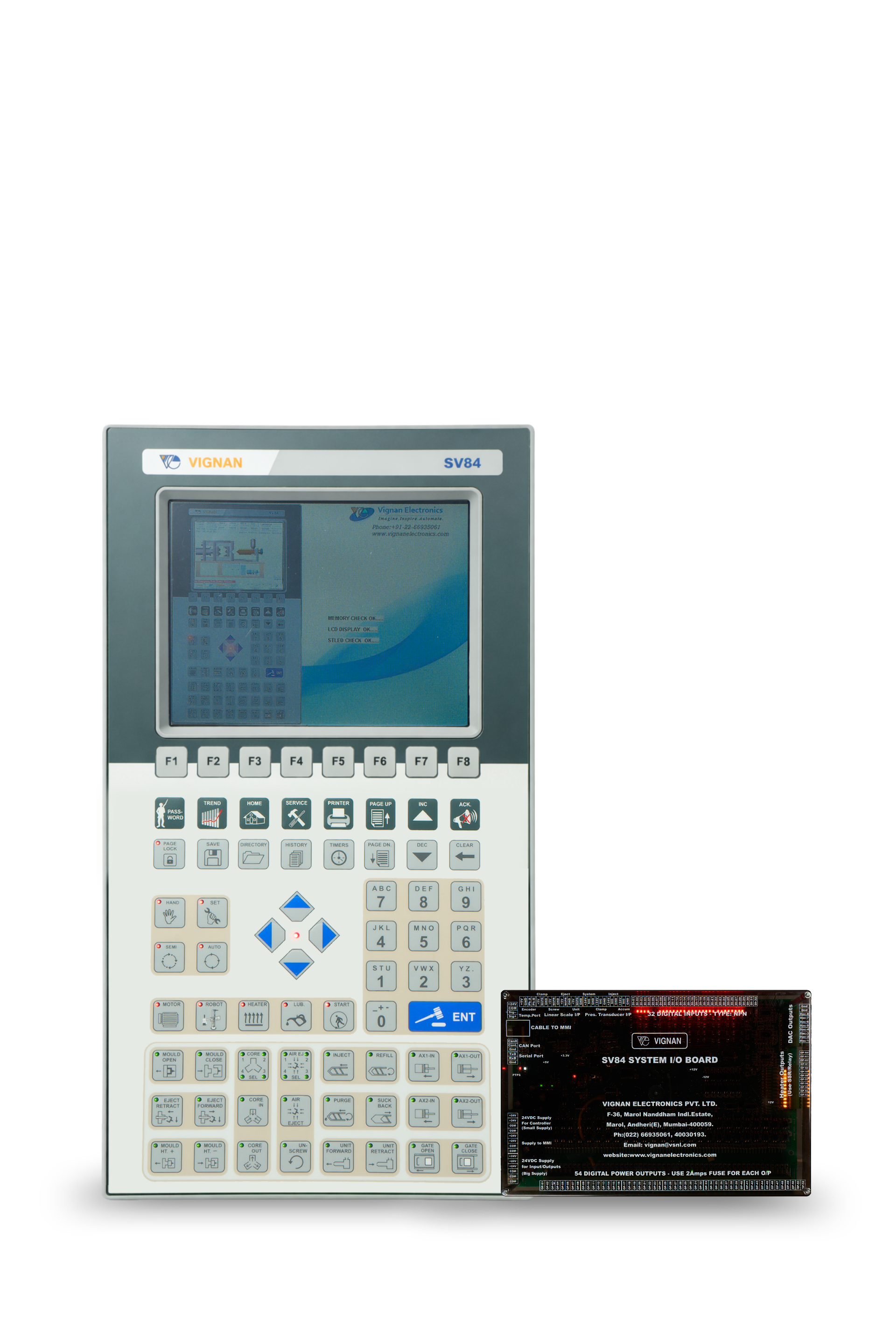

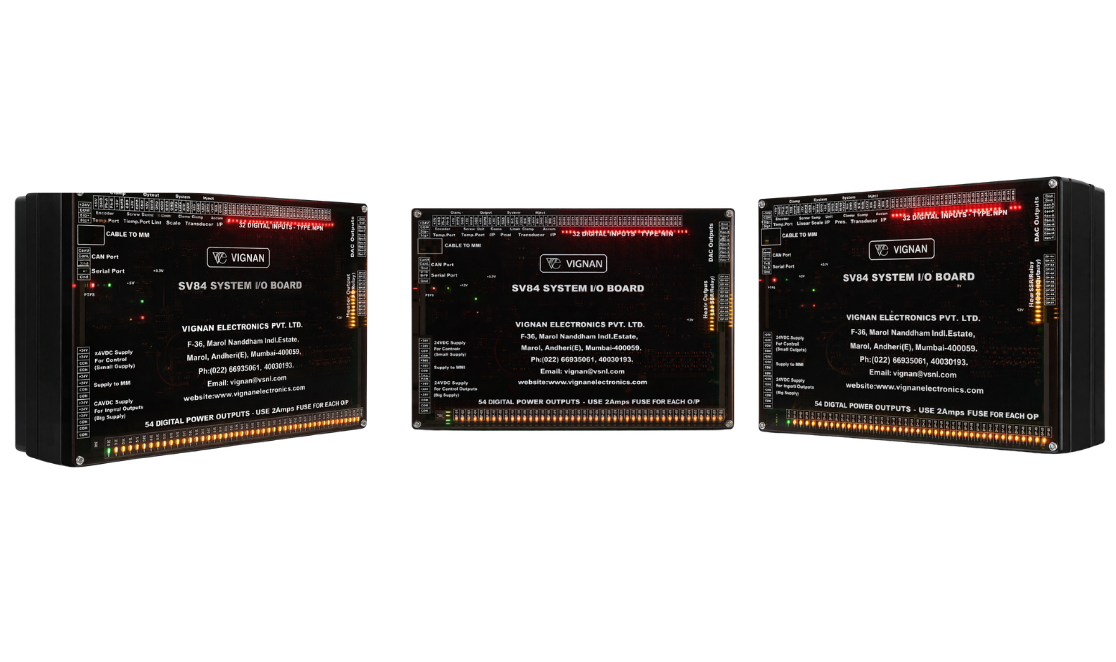

Modular I/O Interface
Flexible I/O configuration allows easy integration with sensors, servo drives, heaters, and machine automation components.

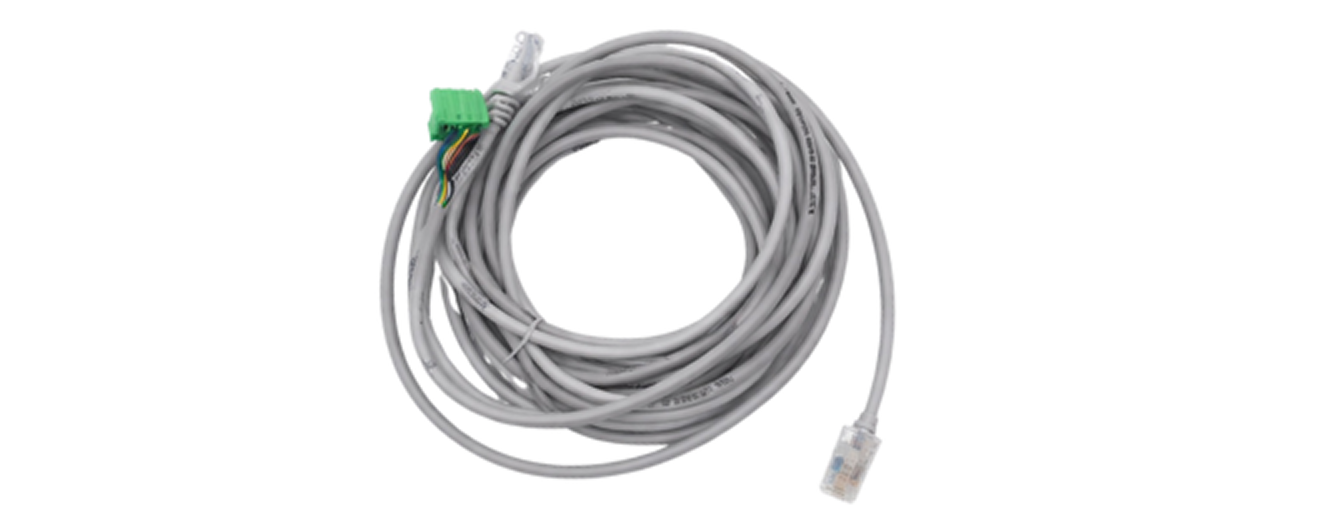

Supply Cable
Pre-configured cable set for quick and secure connectivity between controller and machine systems, reducing installation time.

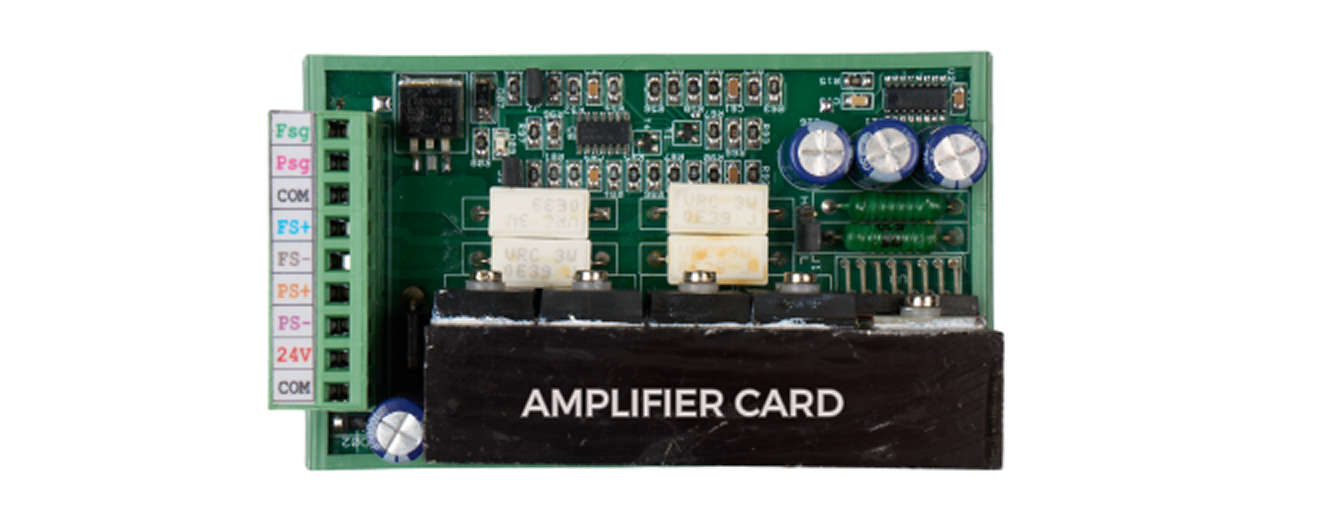

Amplifier Card
Enables precise control of proportional valves, ensuring accurate pressure and flow regulation for optimized machine performance.

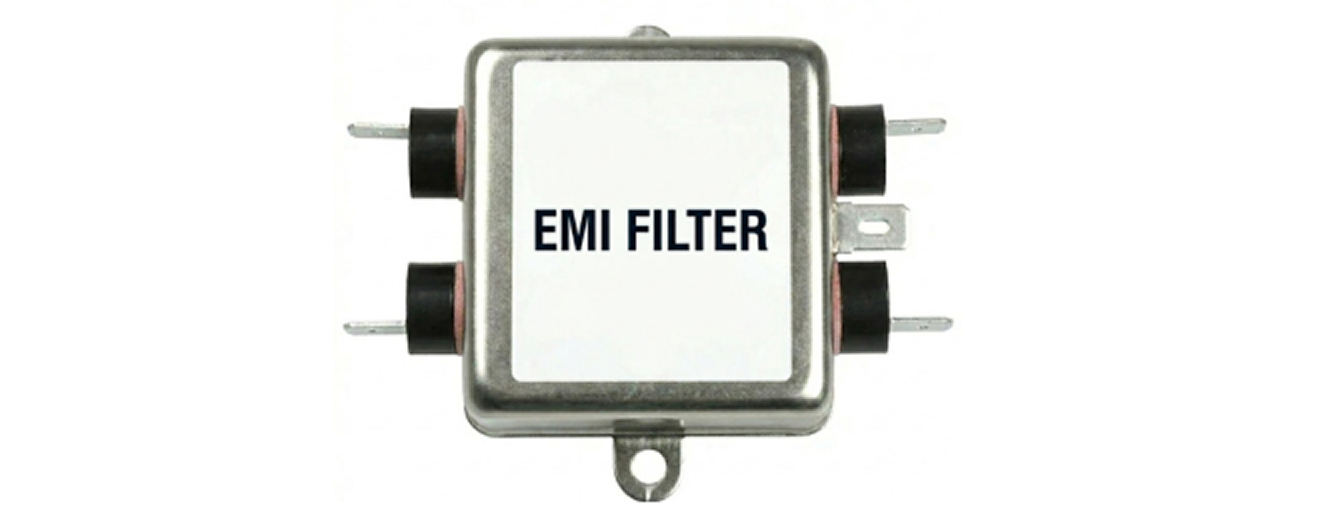

Noise Filter
Protects the system from electrical noise and voltage disturbances, enhancing controller stability and longevity.
RESOURCES
Technical Documents
Download comprehensive documentation for SV84 installation, configuration, and maintenance.
USE CASES
Popular Applications for SV84
Horizontal Injection Molding
High-speed production with consistent output

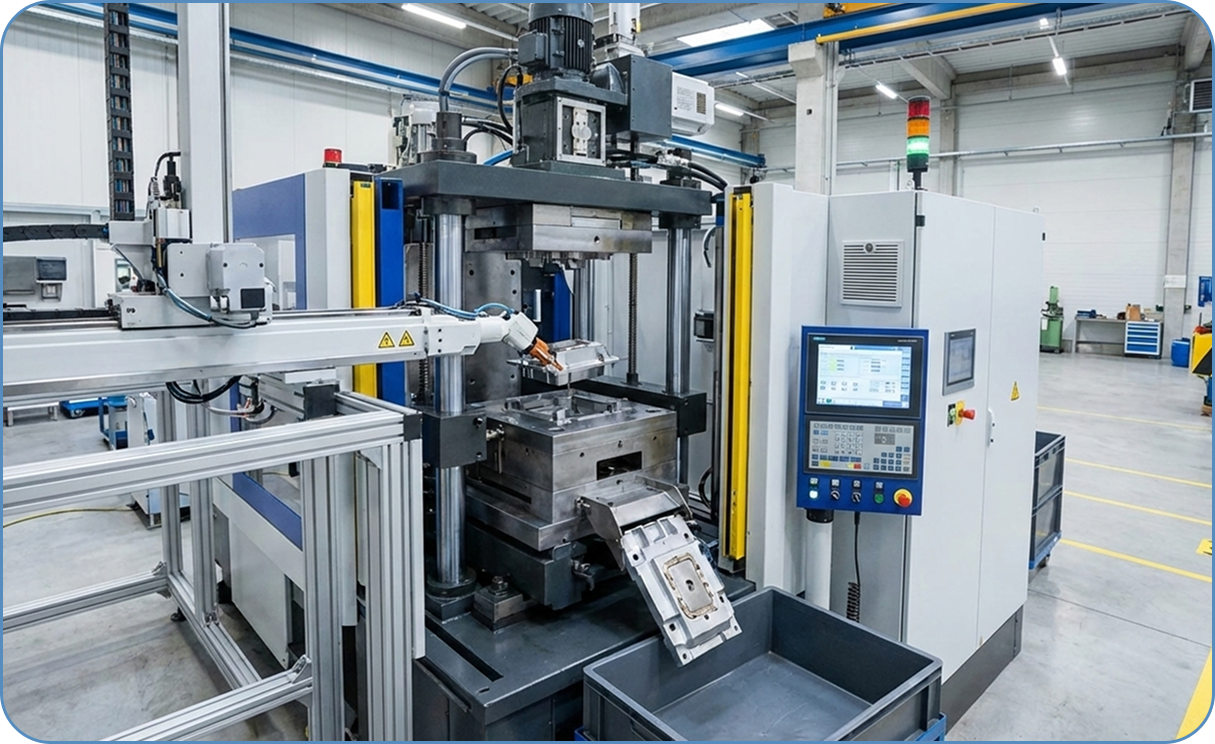

Vertical Injection Moulding
Efficient insert molding with compact design

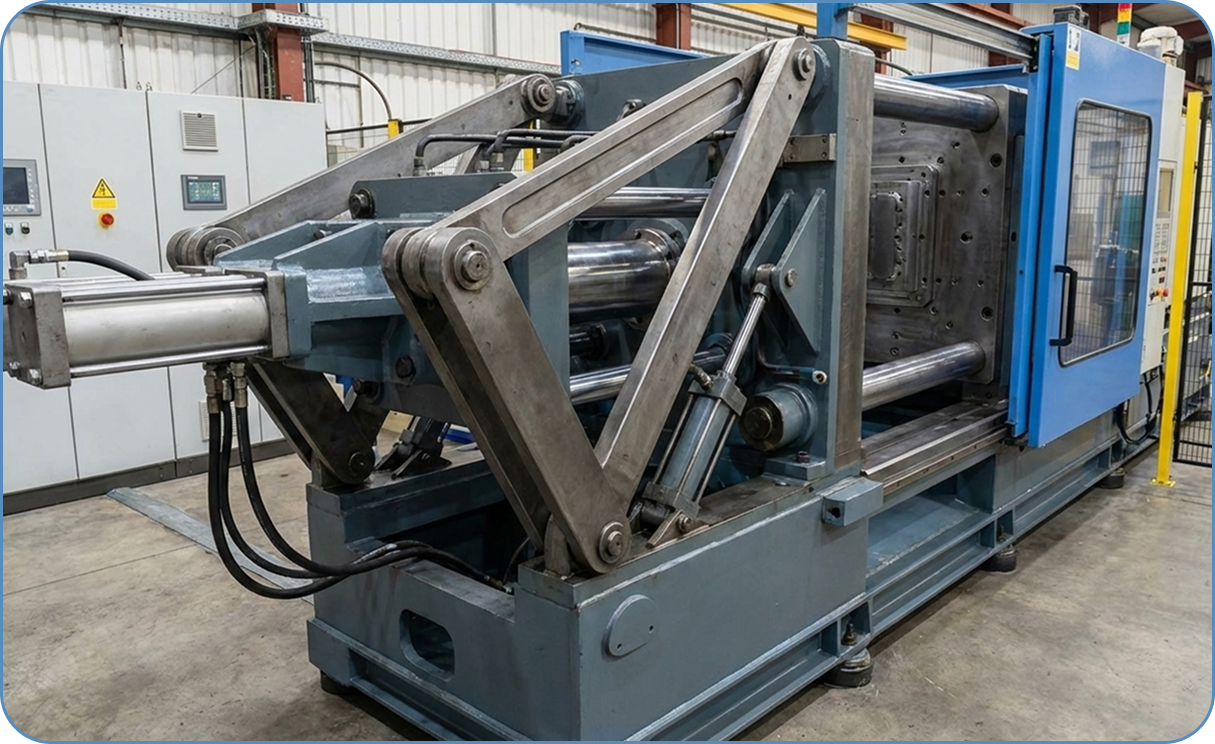

Toggle Mechanism Machines
