SSB (BLUE SCREEN)

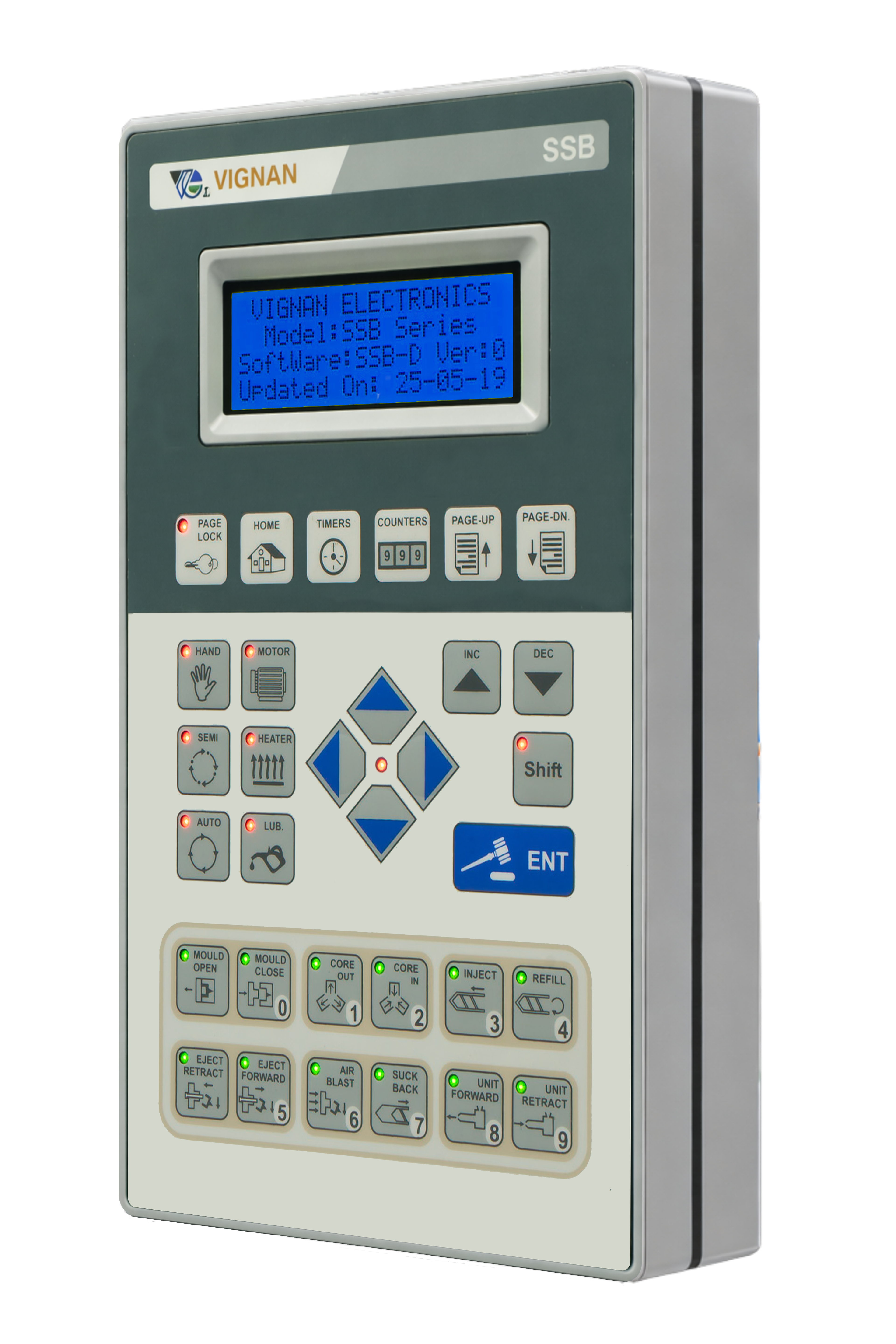

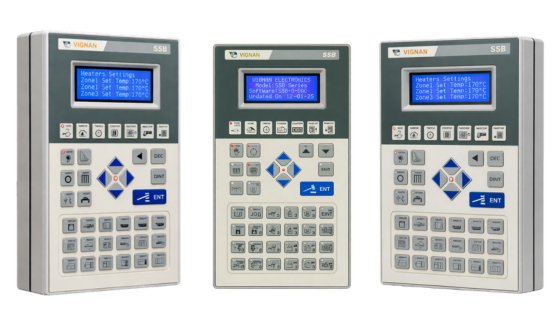

Advanced HMI Controller for Injection Molding Machines
1" Character Display
Screen Size
32-bit ARM-7 @72 MHz
I/O Capacity
Small & Vertical Injection Molding
Best For
MAIN TECHNICAL ADVANTAGES
Key Features
Industry-leading solutions designed for performance, reliability, and ease of use.
Compact Industrial Controller
The SSB system features an ultra-compact architecture, allowing easy installation even in space-constrained machines.
Reliable Embedded Processing
Powered by a 32-bit ARM-7 processor running at 72 MHz, ensuring stable machine operation
Simple Operator Interface
A 4-line industrial display and LED-enabled keypad provide operators with a clear view of machine parameters and system status.
Programmable Digital Outputs
The controller allows on-site programmable digital outputs, enabling customization for different stages of machine operation.
Precise Temperature Control
The system includes adaptive PID temperature control with high measurement accuracy
Quick Setup & Diagnostics
SSB is designed for easy configuration, option management, and fault diagnostics, helping reduce machine downtime.
TECHNICAL DETAILS
Specifications
| Parameter | Value |
|---|---|
| System Configuration | Ultra Compact System |
| MMI CPU | 32-Bit ARM-7 Embedded processor @72MHZ |
| Display | 4 Line Display |
| LCD Backlit | LED Type with brightness control |
| No. of Keys | 32-with LED indication for direct fn.call keys |
| Machine Scan Time | 2500 microsec (400 times/sec) |
| MMI Scan Time | 1000 microsec (1000times/sec) |
| No. of Mould Programs | 32 |
| No. of Digital Inputs | 16 (type NPM-NO, Max.Source Current 5ma) |
| No. Of Digital Outputs | 20 (Max. current output of 2A for each |
| Digital Outputs Feature | Onsite programmable for each stage |
| No. of Temp. Sensors | 4 (Type JK Thermocouple) |
| Analog Input Resolution | 12-bit |
| Temp. Measuring Accuracy | 0.25 °C |
| Temp. Control Accuracy | +1 to -2 oc of set value |
| Type of Temp. Control | Advanced Adaptive PID control |
| No. of PWM Outputs | 2 Nos. digitally user calibrated [Version D.] |
| PWM O/P Voltage Range | O to +10volts with 12-bit resolution |
| Power Consumption | 3.25W max-(standby) |
| Max. Operating Temperature | 60 °C |
| Operability | Ease of setup, operation & fault diagnosis |
| Mechanical Dimensions | 154mm * 245mm |
| Screen Size | 1" Character Display |
| I/O Capacity | 32-bit ARM-7 @72 MHz |
| Best For | Small & Vertical Injection Molding |
| Screen Size | 4-Line |
| I/O Capacity | 32-bit ARM-7 @72 MHz |
| Best For | Small & Vertical Injection Molding |
| I/O Compatibility | Upto 16 Inputs/20 Outputs |
PRODUCT COMPONENTS
What's in the box
Human Machine Interface (HMI)
The simple multi-line display enables quick access to machine parameters, alarms, and process settings.
Controller Processing Unit
The ARM-based processor ensures reliable machine control and stable execution of injection cycles.

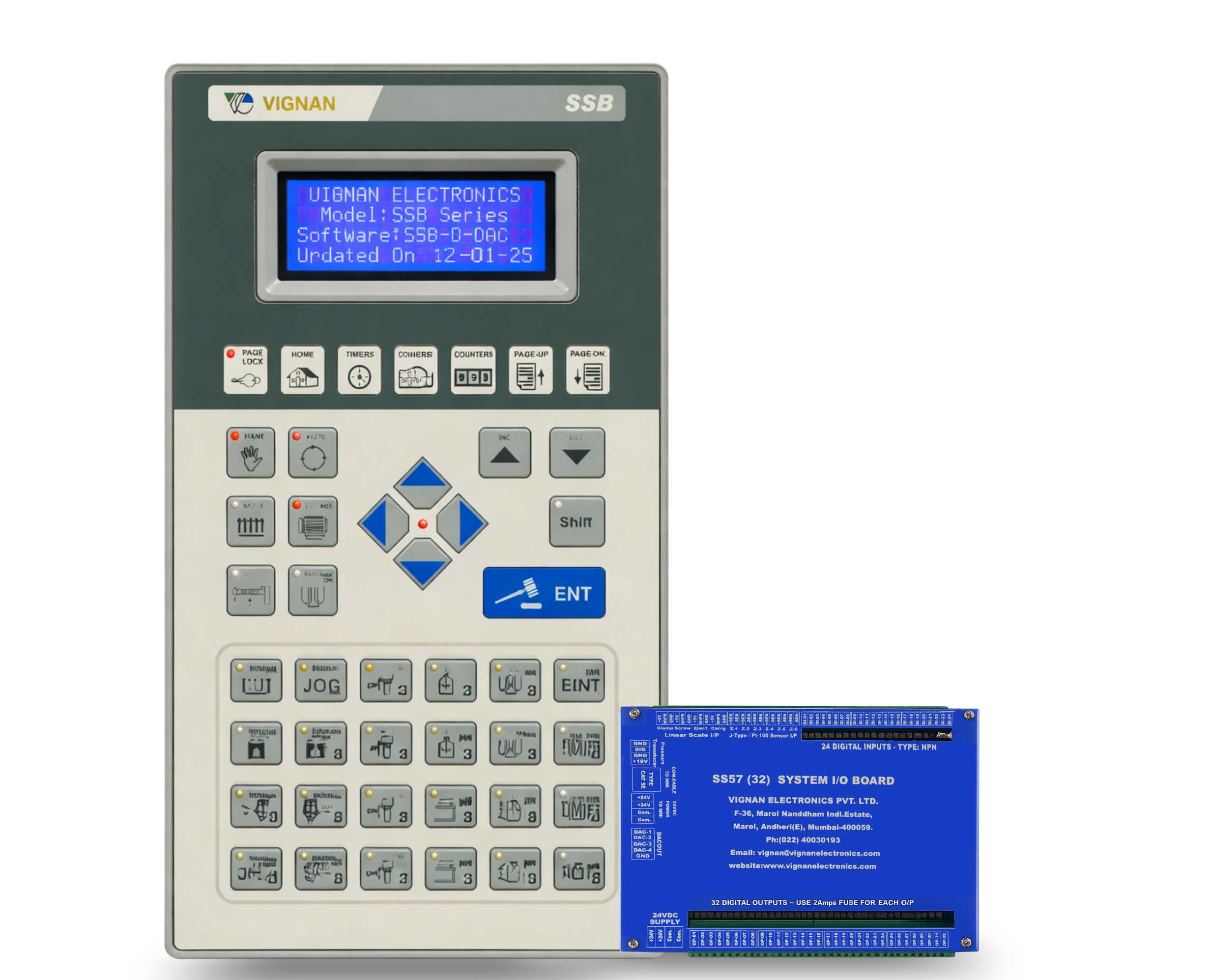

Modular I/O Interface
The integrated I/O system connects sensors, heaters, valves, and machine components for seamless operation.
Supply Cable
Pre-configured cable set for quick and secure connectivity between controller and machine systems, reducing installation time.
Amplifier Card
Enables precise control of proportional valves, ensuring accurate pressure and flow regulation for optimized machine performance.
Noise Filter
Protects the system from electrical noise and voltage disturbances, enhancing controller stability and longevity.
